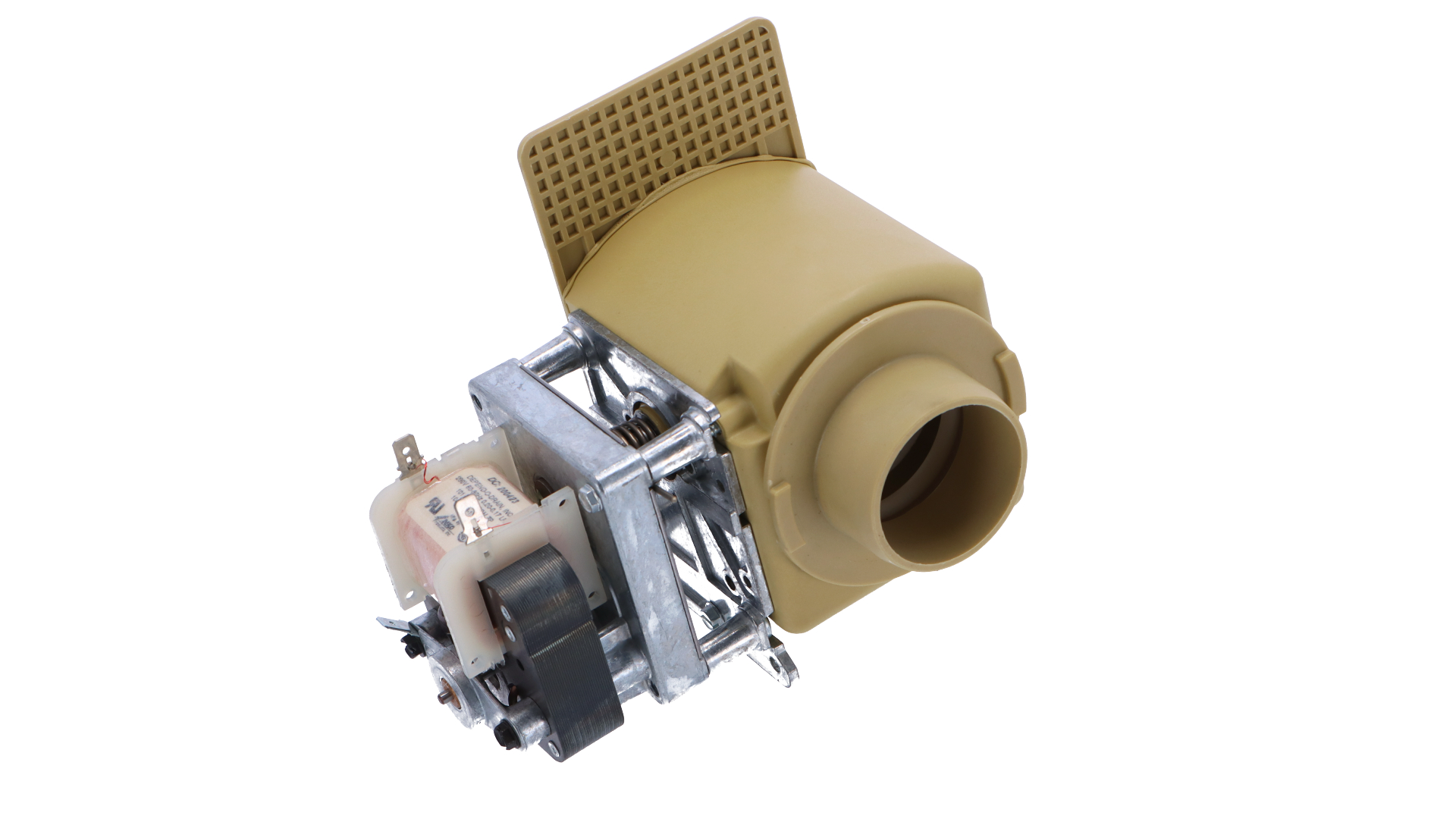

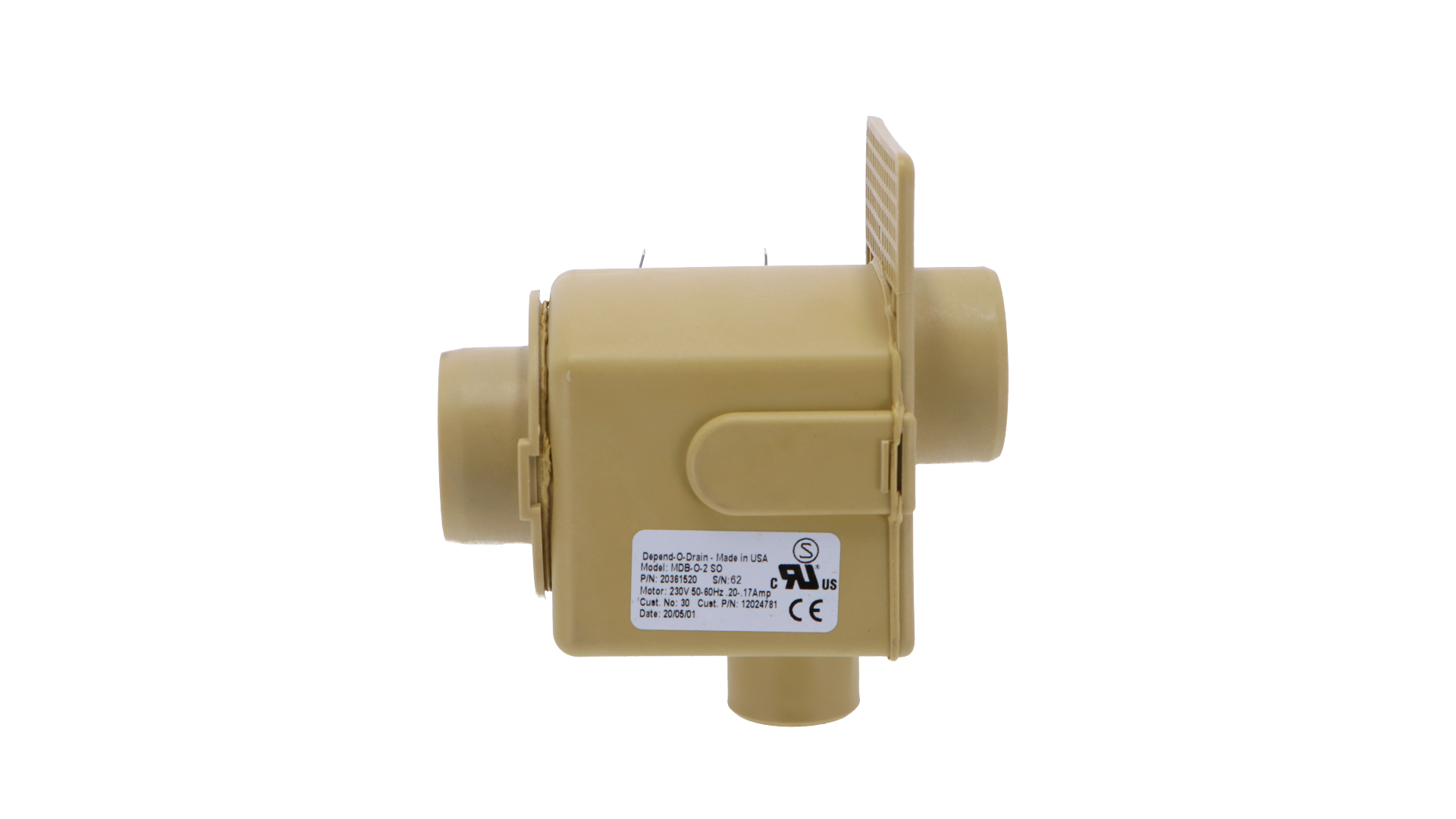

12024781 drainvalve 50mm fagor danube primer domus 8kg and 10lg professional washer lap08 lap10

drainvalve with inlet outlet 50mm

voltage 230 volt/50/60hz

with on the top 32mm overflow

mounted in the back of the professional wasmachingmachines of an 8kg or 10kg washingmachine

brands

fagor

danube

domus

primer

The new valves are coming in black colour.

this valve is easy to replace

remove backplate

two screws

three hoses

and the  2 wires from the coil and 1 wire from the ground.

when fixing the wires if you have 3 connections on the coil

one side is one connection put neutral or phase on it

on the other side if you have two connection always use criscros for 50hz or take the connection straight too the connection on the otherside for 60hz

if you only have two connections the coil is for 50 and 60hz.

we recommend after mounting the valve to put a little plastic protection on top to prevent water from leakage.

12024781 drainvalve 50mm fagor danube primer domus 8kg and 10lg professional washer lap08 lap10

Also check the overflow hose for leaking on the backside where the wires can touch the hose
