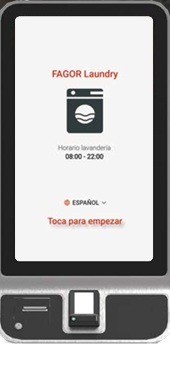

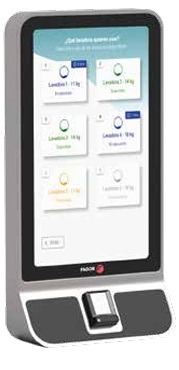

my laundry time kiosk 32 inch

This Payment system works with a big touchscreen

The unit is working with a cashless payment system that works with the most payment solutions

like apple pay, visa, mastercard etc. etc.

- Management by FagorKonnect application, allowing the
business to be tracked in real time, without the need to travel,
configuring it and customising tracking graphs.- Registration and configuration of the kiosk.- Consultation of kiosk status.- Linking of machines.- Tracking of operations (payments).- Know the status of the machines in real time.- Price plans.- Management of multimedia content.- Remote software update.

general features- Easy to install and set up.- Kiosk connection to the internet via ethernet.- Front or rear opening for maintenance.- Integrated with FagorKonnect for unlimited connections of
Fagor Professional equipment with touch control Tp2, via
Ethernet-IoT- Can be connected via pulse communication to other equipment
(8 machines per kiosk)*.
* Installation of the electronic element offered by Fagor is
required in the case of pulse connection- Simple 5-step process for equipment selection, payment and
service activation.- Select the process (washing, drying or disinfection).- Select the machine.- Select the programme.- Pay by placing your card close to the contactless device.- Load the laundry into the machine and press start

This unit works with a backoffice from Onnera Konnekt

Ít's not needed to wire the payment system too the machines

every machine needs a internet connection by router and also the payment system needs a internet connection

what if you have other washingmachine, dryers then brands from fagor, danube, primer or Domus ???

it's also possible to use this system with machines from other brands

you need too buy an extention board for using maximum 8 machines from other brands.

this machines needs a wiring too the payment system

Soo if you need too change you laundry for the futher you can buy this payment system.

wire the old machine you have and working also with new machines from Fagor.

Plus is that you don't need too change you whole laundry in one time.

how about the payment solution ?

The kiosk only works with Commercia Global Payment platform.

This is the lowest commission in the market, 0,9%+0,01€ per transaction.

Also, there is no fees per machine, per kiosk, monthly, anualy..etc

GENERAL DATA
Pulse connection Opt.
Pulse wiring capability
Ethernet connection Yes
Customisable graphics (sticker) Yes
Possibility of wall installation Yes
Maintenance from a back room Yes
Printer option Yes
CONNECTIONS ELECTRIC
Voltage 230V- I + N +T
DIMENSIONS / PACKING DIMENSIONS
Net width / Gross width
Net depth / Gross depth
Net height / Gross height
Net weight / Gross weight
Packaging volume
WITHOUT REAR ROOM
A cable outlet is required at the front,
which contains the Ethernet cable,
power supply and pulse wiring.
By opening a lock on the side, it is
possible to move the whole assembly
(leaving only the anchoring piece on
the wall) in order to carry out mainte
nance of the components.
01. Dataphone
02. Screen 31,5”
03. Printer (optional)
04. Ethernet connection
05. Electrical connections
WITH ENABLED REAR ROOM
All wiring concealed and possibility of
manipulation of components through
the rear.
For this purpose, it is recommended
to drill a cavity in the wall respecting
the fixing points of the Kiosk anchor
ing piece.
U. MY LAUNDRY TIME KIOSK 32
Nº 8----
Nº x mm² / A 2 x 1,5 + T - 16A
mm 507 / 565
mm 185,6 / 220
mm 980,2 / 1.050
Kg 22,5 / 25

Fagor Professional offers you a new way of making payments and managing your self-service laundry. Its new
simple and modern payment centre, My Laundry Time Kiosk, is also integrated into FagorKonnect.
It manages payments simply, securely and quickly with the built-in contactless payment terminal.
Two versions of 12” and 32” touchscreens, for a system that is also compatible and complementary with other
payment systems.

Versatility
•  Can be combined with other payment systems
(coins, mobile phones, etc.)
•  Possible to connect equipment by pulse
communication up to a maximum of 8 units
with M control and/or equipment from other
manufacturers*

  *  Requires ordering the external pulse signal
card option.
Efficient    management
•    Centralised    financial    management
 Keep track of collections and payments at all
 times, you can even manage refunds.
•    Management    of    promotions
  You can create on-screen promotions for your
customers.
•    Kiosk    management
  If you have more than one kiosk in the same
laundry or other laundries, you can register them on
FagorKonnect via the “machines” menu and list them.
• ONNPay
  Manage payments through your own standard
payment gateway in your My Laundry Time Kiosk
with outstanding advantages:
  • No start-up fees
        •    No    fixed    costs,    no    annual    licence    fees
        •    Very    low    commission    rates    with    no    fixed    fees*

 Check available payment countries and their corresponding fees.
Easy to install and set up
• Kiosk connected to the internet via Ethernet
• Can be set up in just a few minutes
• Integrated with FagorKonnect and the My
 Laundry Time App

•  Unlimited connections to Fagor Professional
equipment with Touch Plus Control TP2
It is recommended to install on a wall where there is rear access for
easy access to all elements.
In installations with access only from the front,
25 cm must be left on the left side for access.

Security
• No coin storage, electronic payment
• Contactless payment, by payment gateway
Check available payment countries and their
corresponding fees.

 Customer experience

Touchscreens with a very simple and user-friendly interface, making the experience in your laundry very
simple and safe for your customer.
The steps to arrange and pay for the laundry service are very simple, visual and quick.

Service selection, payment and activation process

1. Select the operation: washing, drying
 or disinfection
2. Select the available machine
3. Select the programme
4. Add extra time (optional)
5. Pay by tapping your contactless device
6.    Confirm    payment    and    press    START

The customer can also:
• Choose their language on the start screen
• Ask for a payment/service receipt to be issued:
  •     Paper format in My Laundry Time Kiosk
32 + Printer model
  •     Electronic format in both models by
registering in the APP a

Owner experience

As a laundry owner you need a simple element for the
customer that makes your life easier. My Laundry Time Kiosk
is the element that provides the customer with an improved
and secure experience, as well as allowing you to manage
it    efficiently    and    remotely    thanks    to    its    integration    with
FagorKonnect.

Efficient    management
•    Centralised    financial    management
 Keep track of collections and payments at all
 times, you can even manage refunds.
•    Management    of    promotions
  You can create on-screen promotions for your
customers.
•    Kiosk    management
  If you have more than one kiosk in the same
laundry or other laundries, you can register them on
FagorKonnect via the “machines” menu and list them

 ONNPay
  Manage payments through your own standard
payment gateway in your My Laundry Time Kiosk
with outstanding advantages:
  • No start-up fees
        •    No    fixed    costs,    no    annual    licence    fees
        •    Very    low    commission    rates    with    no    fixed    fees*
